BAG HANDLER - FOAM GRIPPER

ALL INDUSTRIES - STANDARD

bag handler vacuum gripper
Bag handler foam vacuum gripper

CONCEPT



  • Pick up bags or other shrink wrapped products
  • Can be used for other type of single products covering the full gripper
  • Thick foam rim compensates with shape of products





BENEFITS



  • Ready to use (vacuum source included)
  • Foam rim easy to change
  • Multi-zone operated automatically via check valves (optionnal if different sizes need to be handled)





EASY TO CUSTOMIZE



  • Sized to fit your bags
  • Depth of the chamber adjustable
  • Blowers to increase flow for porous products

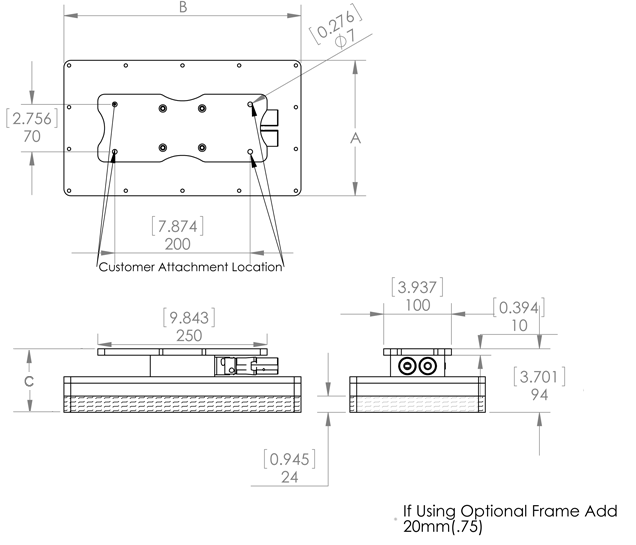

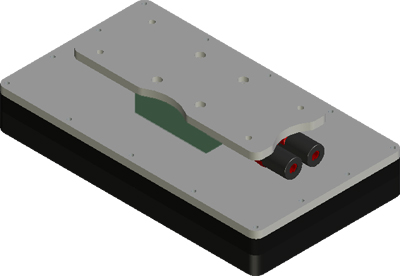

bag handler drawing 1bag handler 3d







  Size of Gripper in mm(in)
A B C
BG-100x250-NF-1ST 100(3.94) 250(9.84) 62(2.44)
BG-150x300-NF-1STX2 150(5.91) 300(11.81) 62(2.44)
BG-200x350-NF-1STX2 200(7.87) 350(13.78) 62(2.44)
BG-250x400-NF-1STX2 250(9.84) 400(15.75) 93(3.66)
BG-300x500-NF-1STX2 300(11.81) 500(19.68) 93(3.66)
BG-400x600-NF-1STX2 400(15.75) 600(23.62) 93(3.66)

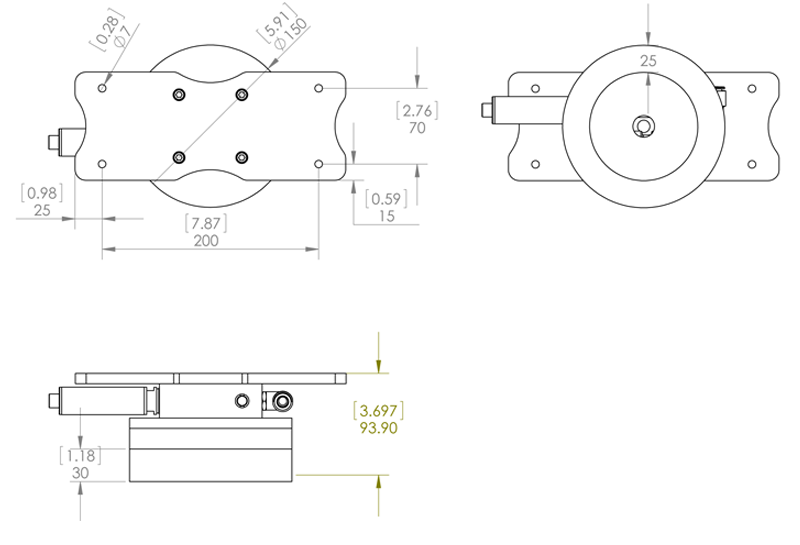

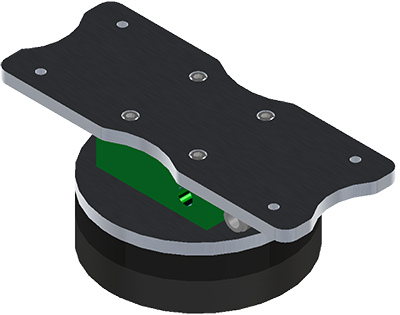

r150 drawingbag handler r 3d



  Size of Gripper in mm(in)
BG-R150-NF-1ST ∅150 (5.91)

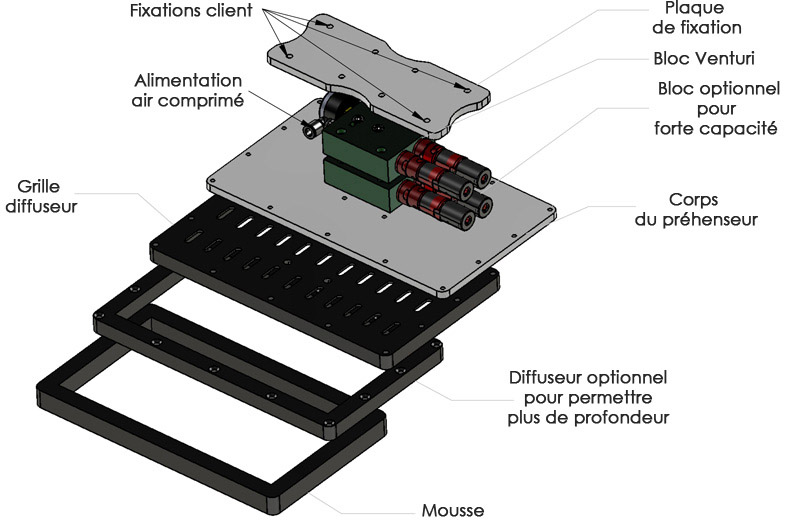

bag handler drawingbag handler 3d



  Holding Force N(Lbs)*
Non-porous Semi-porous Porous
BG-R150-NF-1ST 195(42.9) 117(25.8) 49(10.7)
BG-100x250-NF-1ST 277(61) 166(36.6) 69(15.2)
BG-150x300-NF-1STX2 500(110.1) 300(66) 125(27.5)
BG-200x350-NF-1STX2 777(171.1) 466(102.6) 194(42.7)
BG-250x400-NF-1STX2 1111(244.7) 666(146.7) 277(61)
BG-300x500-NF-1STX2 1666(366.9) 1000(220.2) 416(91.6)
BG-400x600-NF-1STX2 2666(587.2) 1600(352.4) 666(146.7)
*fully covered, safety factor 1.5 already applied
Specifications are subject to change

bag handler drawingbag handler 3d



Multi-zone for different sizes products

Blowers for high flow requirements (soft and porous products)

Custom designs

Labeling

BG- 100x250 -AF -2STX2
Range
of the gripper		 Dimensions :
- ø150 mm
- 100x250 mm
- 150x300 mm
- 200x350 mm
- 250x400 mm
- 300x500 mm
- 400x600 mm		 Flow :
- NF = with normal frame
- AF = with additional frame		 Integrated
Vacuum Source :
- 1ST
- 2ST
- PLUG
- HB = Hose Barb
- XB = External Barb



Example: BG-400x600-NF-2STX4
Bag Handler, dimensions 400mm per 600mm with normal frame and four 2 stages cartridges
