SAFE & LIGHT - FOAM GRIPPER

ALL INDUSTRIES - STANDARD

Safe & Light
Joulin Safe&Light

VERSATILE

  • Handle all your product without any adjustment from cardboard boxes, to slip sheets, cans, wood boards, shrink wrapped packs and many other types
  • Valves technology available for constant gripping power regardless the type of product
  • Including new magnetic system EasyFoam for quick and easy foam replacement
  • Rugged and not affected by dust





COMPACT

  • Naturally adapted for collaborative application with his foam body
  • Extremely resistant for high duties with his carbon fibre structure
  • Available with internal or external vacuum generation





EASY TO INSTALL

  • Robot fixing kit available for popular robots as well as specific needs on request (option)
  • Valve kit for venturi available for a “Plug and Play” solution (in option)

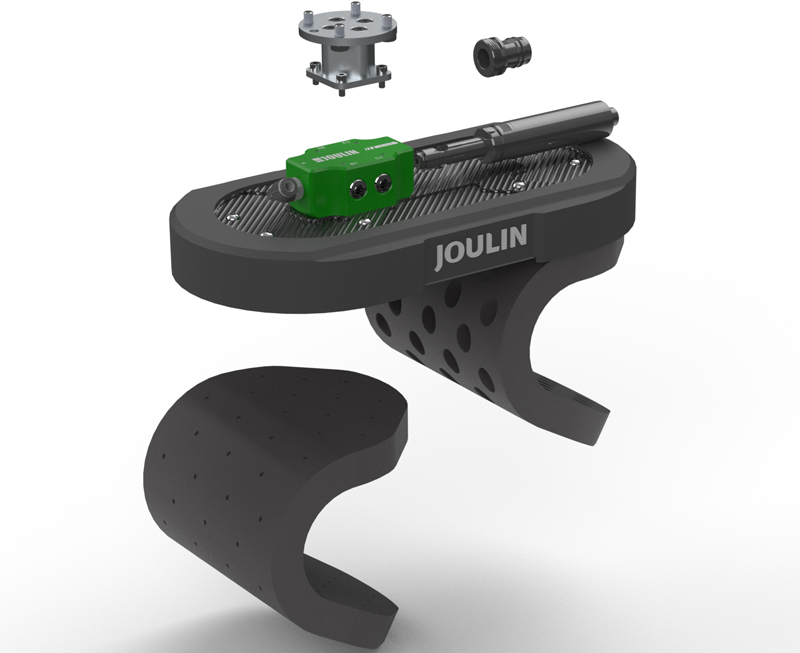

safe light 3d



Reference

Maximal Dimension

mm

Mass

g (lbs)

Air Consumption

Nl/sec (scfm) @6bar - 87psi

Max Flow

Nl/sec (scfm)

Lifting Capacity

kg (lbs)

SL-VG-120x240-1STH

130x250x90

770 (1.7)

3.58 (7.59) 4.48 (9.5) 30 (66)
SL-PG-120x240-1STH 130x250x82 720 (1.6) 3.58 (7.59) 4.48 (9.5) 30 (66)
SL-VG-160x320-1STH 170x330x90 1080 (2.4) 3.58 (7.59) 4.48 (9.5) 59 (129.8)
SL-PG-160x320-1STH 170x330x82

1015 (2.2)

3.58 (7.59) 4.48 (9.5) 59 (129.8)



Labeling

SL- PG- 130x250 -REG -1ST
Range of the gripper

Technology :
- VG = Valve Gripper
- PG = Port Gripper

Dimensions :

- 120x240 mm

- 160x320 mm

Flow :
- REG = Regular
- HG = High

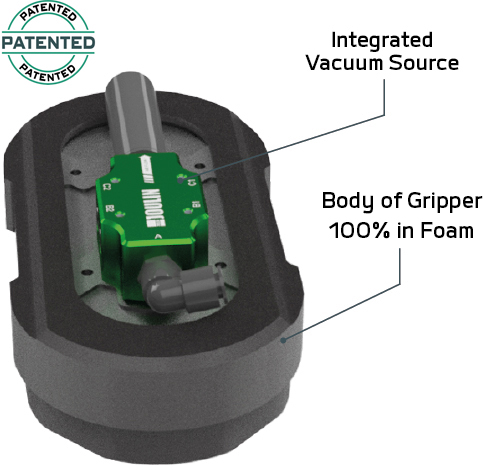

Integrated
Vacuum Source :

- 1STH
- HB = Hose Barb
