VALUE GRIPPER - FOAM GRIPPER

ALL INDUSTRIES - STANDARD

Value Gripper
value gripper vacuum gripper

CONCEPT



  • Twisted and uneven products
  • Very economical compared with other tools
  • Vacuum source included (ejectors)
  • 80% minimum coverage





BENEFITS



  • Ready to install (self-contained)
  • Quick pick and release
  • Simple to use
  • Low maintenance
  • Tilt from horizontal to vertical





EASY TO CUSTOMIZE



  • Easy and inexpensive to manufacture to fit your needs
  • Zoning possible
  • Lifting power adjustable by foam and ejector choice
  • Number and size of the foam openings adjustable upon request

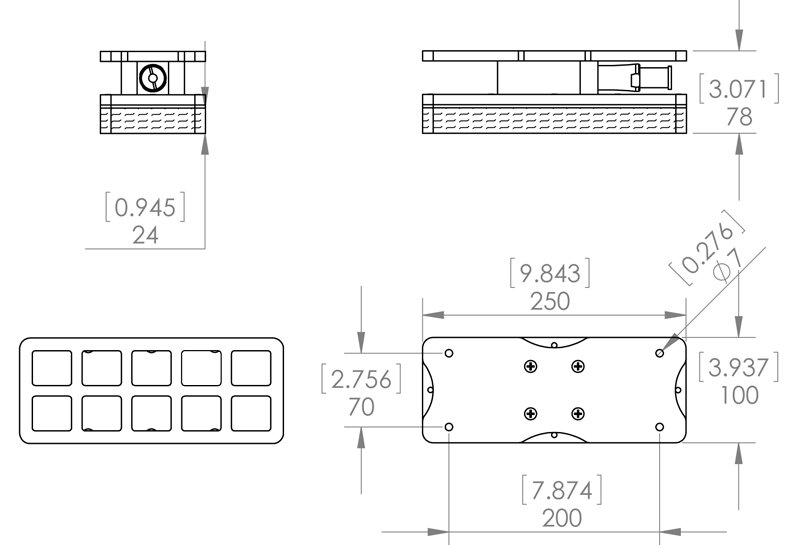

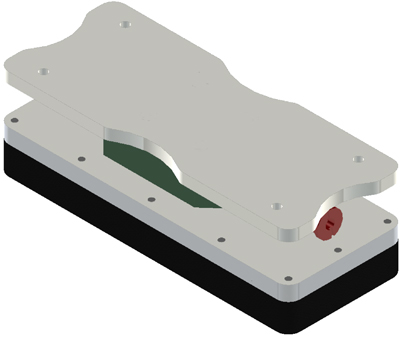

value100x250 drawingvalue100x250 3d



Feed pressure: 6 bars - 87 psi Holding Force N(Lbs)*
20% vacuum 40% vacuum 60% vacuum
VL-PG-100x250-REG-1ST Non-porous... like steel 141(31.09) 288(63.49) 431(95.02)
Semi-porous... like wood 137(30.2) 261(57.54) 385(84.88)
Porous... like cardboard 96(21.16) 155(34.17) 219(48.28)
80% coverage is recommended for PG grippers - *fully covered, safety factor 1.5 already applied



  Technical Data Replaceable Parts
Air Consumption
Nl/sec(scfm)		 Max Flow
Nl/sec(scfm)		 Weight
kg(Lbs)		 Foam Pad Vacuum Generator
VL-PG-100x250-REG-1ST 1.79(3.79) 2.36(4.87) 1.55(3.42) PGF100.250 PPMS
Specifications are subject to change

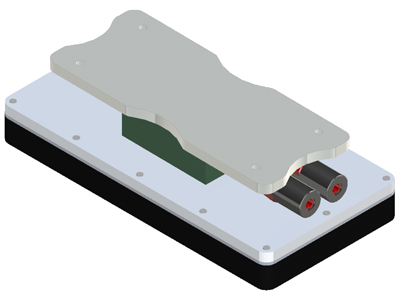

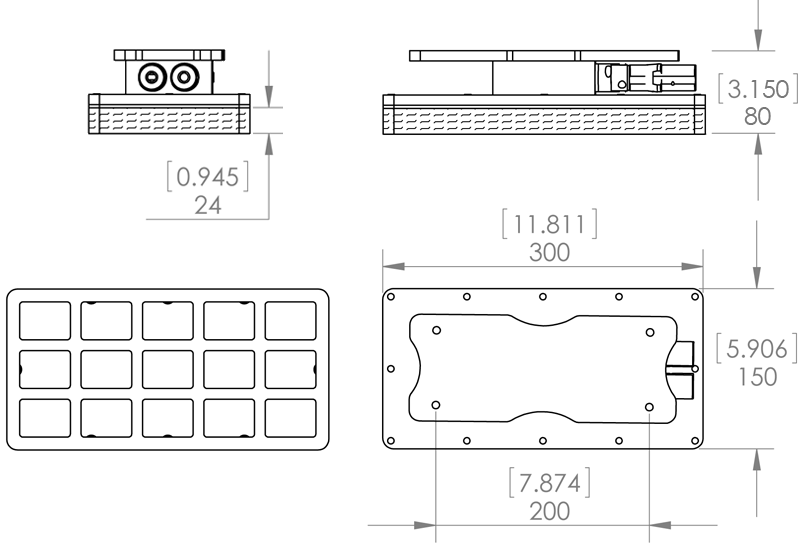

value150x300 drawingvalue150x300 3d



Feed pressure: 6 bars - 87 psi Holding Force N(Lbs)*
20% vacuum 40% vacuum 60% vacuum
VL-PG-150x300-REG-1STX2 Non-porous... like steel 293(64.6) 597(131.62) 894(197.09)
Semi-porous... like wood 283(62.39) 589(129.85) 872(192.24)
Porous... like cardboard 199(43.87) 321(70.77) 442(97.44)
80% coverage is recommended for PG grippers - *fully covered, safety factor 1.5 already applied



  Technical Data Replaceable Parts
Air Consumption
Nl/sec(scfm)		 Max Flow
Nl/sec(scfm)		 Weight
kg(Lbs)		 Foam Pad Vacuum Generator
VL-PG-150x300-REG-1STX2 3.58(7.42) 4.72(9.74) 3.2(7.05) PGF150.300 PPMD
VL-PG-150x300-REG-1STX3 5.37(11.37) 7.08(14.61) 4.2 (9.25) PGF150.300 2 x PPMD
VL-PG-150x300-REG-1STX4 7.16(15.16) 9.44(19.48) 4.2 (9.25) PGF150.300 2 x PPMD
Specifications are subject to change

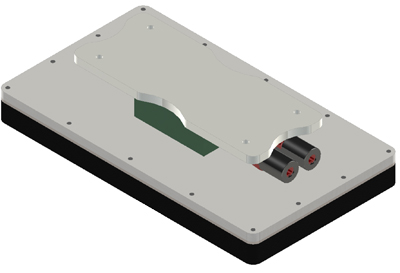

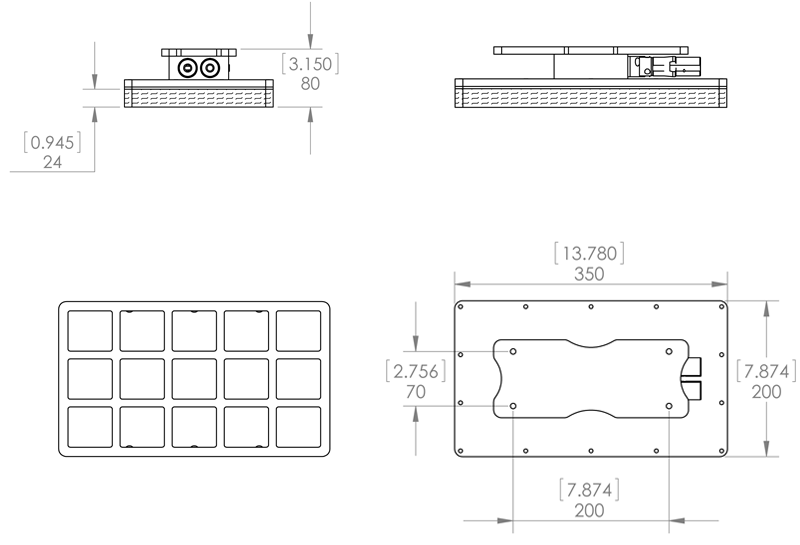

value200x350 drawingvalue200x350 3d



Feed pressure: 6 bars - 87 psi Holding Force N(Lbs)*
20% vacuum 40% vacuum 60% vacuum
VL-PG-200x350-REG-1STX2 Non-porous... like steel 597(131.62) 1289(284.18) 1785(393.52)
Semi-porous... like wood 504(111.11) 1146(252.65) 1729(381.18)
Porous... like cardboard 382(84.22) 631(139.11) 685(151.02)
80% coverage is recommended for PG grippers - *fully covered, safety factor 1.5 already applied



  Technical Data Replaceable Parts
Air Consumption
Nl/sec(scfm)		 Max Flow
Nl/sec(scfm)		 Weight
kg(Lbs)		 Foam Pad Vacuum Generator
VL-PG-200x350-REG-1STX2 3.58(7.42) 4.72(9.74) 4.65(10.25) PGF200.350 PPMD
VL-PG-200x350-REG-1STX3 5.37(11.37) 7.08(14.61) 5.65(12.45) PGF200.350 2 x PPMD
VL-PG-200x350-REG-1STX4 7.16(15.16) 9.44(19.48) 5.65(12.45) PGF200.350 2 x PPMD
Specifications are subject to change

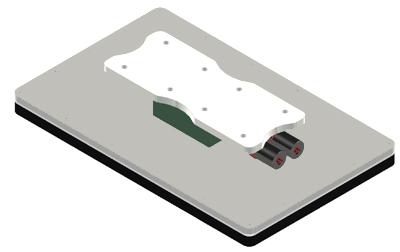

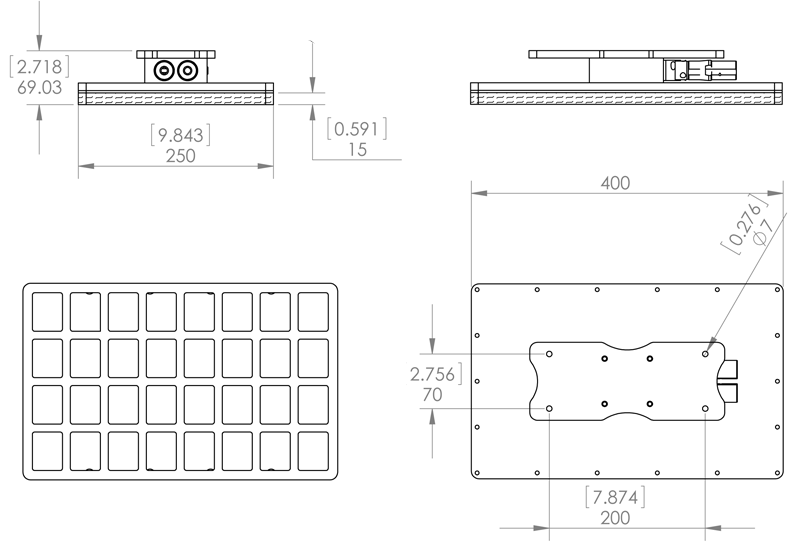

value250x400 drawingvalue250x400 3d



Feed pressure: 6 bars - 87 psi Holding Force N(Lbs)*
20% vacuum 40% vacuum 60% vacuum
VL-PG-250x400-REG-1STX2 Non-porous... like steel 707(155.87) 1529(337.09) 2117(466.72
Semi-porous... like wood 598(131.83) 1470(324.08) 2035(448.64)
Porous... like cardboard 453(99.87) 748(164.9) 812(179.02)
80% coverage is recommended for PG grippers - *fully covered, safety factor 1.5 already applied



  Technical Data Replaceable Parts
Air Consumption
Nl/sec(scfm)		 Max Flow
Nl/sec(scfm)		 Weight
kg(Lbs)		 Foam Pad Vacuum Generator
VL-PG-250x400-REG-1STX2 3.58(7.42) 4.72(9.74) 4.65(10.25) PGF200.350 PPMD
VL-PG-250x400-REG-1STX3 5.37(11.37) 7.08(14.61) 5.65(12.45) PGF200.350 2 x PPMD
VL-PG-250x400-REG-1STX4 7.16(15.16) 9.44(19.48) 5.65(12.45) PGF200.350 2 x PPMD
Specifications are subject to change



Labeling

VL- PG- 200x350 -REG -2STX2
Range
of the gripper		 Technology :
- PG = Port Gripper		 Dimensions :
- 100x250 mm
- 150x300 mm
- 200x350 mm
- 250x400 mm		 Flow :
- REG = Regular
- HG = High		 Integrated
Vacuum Source :
- 1ST
- 2ST
- PLUG
- HB = Hose Barb
- XB = External Barb



Example: VL-PG150x300-HG-2STX2
Value Gripper with calibrated aperture adjustment, dimensions 150mm per 300mm with high flow and two 2 stages cartridges
