PALLETIZER PRO - FOAM GRIPPER

ALL INDUSTRIES - STANDARD

Palletizer Pro gripper
pelletier pro vacuum gripper

CONCEPT



  • Pick up all products (open top, shrink, wrap, etc...)
  • Gripping power remains constant whether single parts or entire layers
  • Same tool for all products (slip sheets and pallets as well)
  • Different foam patterns to fit your applications
  • Uneven surfaces





BENEFITS



  • Saving up to 50% of energy with the Wave System™ (internal check valves)
  • Low maintenance
  • Not sensitive to dust
  • No filter required
  • Adjustable internal component





EASY TO CUSTOMIZE



  • Easy and inexpensive to manufacture to fit your needs
  • Zoning possible
  • Adjustable lifting capacity with different check valves
  • Robot attachment and other options available
  • Quick delivery time

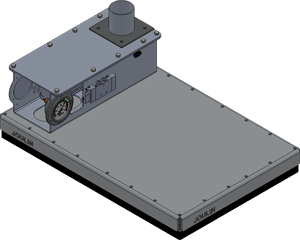

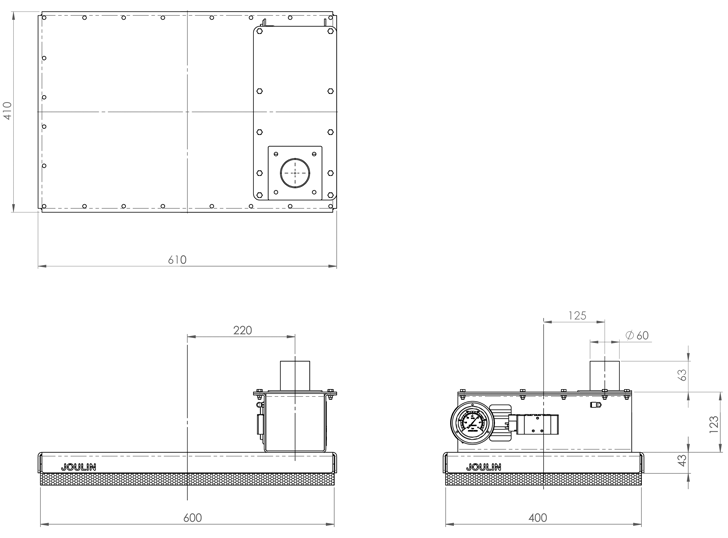

pa600x400 drawingpa600x400 3d



  Weight kg(Lbs) Power needed kw(HP) Valves Foam Pad
PA-VG-600x400-P20 12(26.44) 3.3 to 4.3 (5.1 to 6.4) 551 PAF600.400-20
PA-VG-600x400-P28 12(26.44) 3.3 to 4.3 (5.1 to 6.4) 260 PAF600.400-28
PA-VG-600x400-P40 12(26.44) 1.5 to 3.3(2.35 to 5.1) 126 PAF600.400-40
Specifications are subject to change


This gripper includes:
• PowerGrip™
• Wave System™
• GripTech™



Available:
• Zoning
• Rotating connection
• Blow off

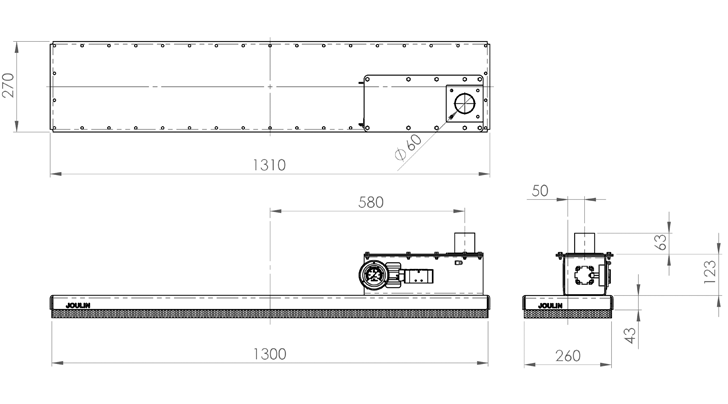

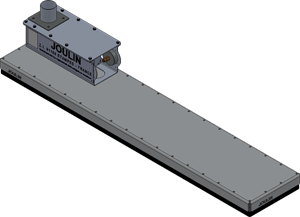

pa1300x260 drawingpa1300x260 3d



  Weight kg(Lbs) Power needed kw(HP) Valves Foam Pad
PA-VG-1300x260-P20 17(37.47) 4.3 to 7.5(6.4 to 16.9) 768 PAF1300.260-20
PA-VG-1300x260-P28 17(37.47) 3.3 to 4.3 (5.1 to 6.4) 360 PAF1300.260-28
PA-VG-1300x260-P40 17(37.47) 1.5 to 3.3(2.35 to 5.1) 192 PAF1300.260-40
Specifications are subject to change
This gripper includes:
• PowerGrip™
• Wave System™
• GripTech™



Available :
• Multi-zones
• Connections tournantes (piquages)
• Contre-soufflage

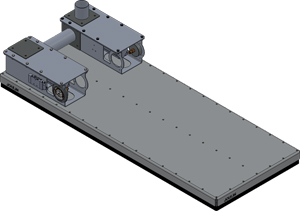

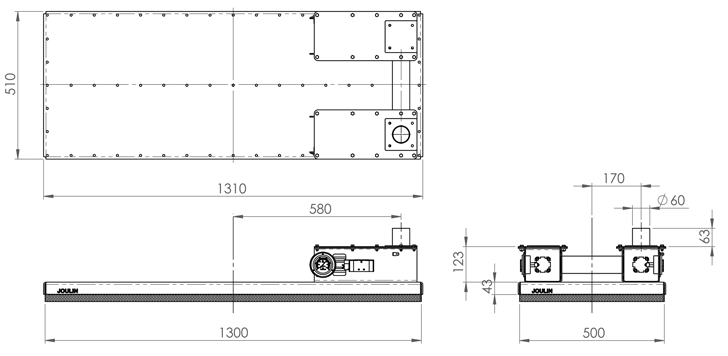

pa1300x500 drawingpa1300x500 3d



  Weight kg(Lbs) Power needed kw(HP) Valves Foam Pad
PA-VG-1300x500-P20 32(70.53) 4.3 to 7.5(6.4 to 16.9) 1536 PAF1300.500-20
PA-VG-1300x500-P28 32(70.53) 4.3 to 7.5(6.4 to 16.9) 765 PAF1300.500-28
PA-VG-1300x500-P40 32(70.53) 3.3 to 4.3 (5.1 to 6.4) 384 PAF1300.500-40
Specifications are subject to change


This gripper includes:
• PowerGrip™
• Wave System™
• GripTech™



Available:
• Zoning
• Rotating connection
• Blow off

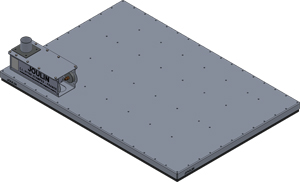

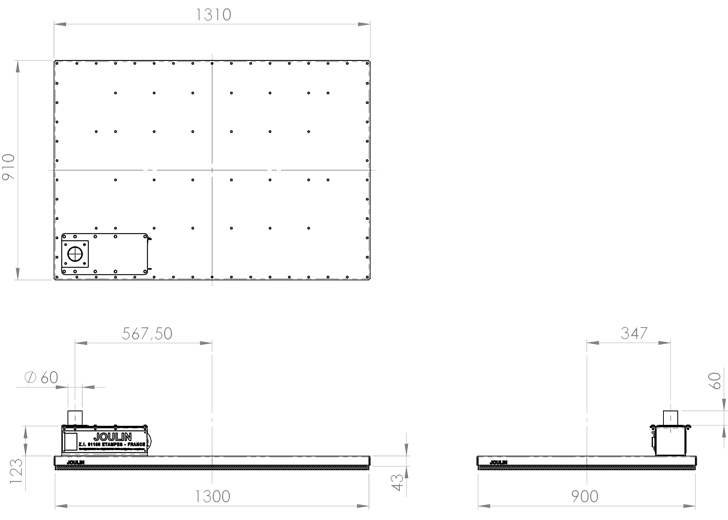

pa1300x900 drawingpa1300x900 3d



  Weight kg(Lbs) Power needed kw(HP) Valves Foam Pad
PA-VG-1300x900-P20 58(127.8) 7.5 to 18 (16.9 to 24.1) 2816 PAF1300.900-20
PA-VG-1300x900-P28 58(127.8) 4.3 to 7.5(6.4 to 16.9) 1395 PAF1300.900-28
PA-VG-1300x900-P40 58(127.8) 4.3 to 7.5(6.4 to 16.9) 704 PAF1300.900-40
Specifications are subject to change
This gripper includes:
• PowerGrip™
• Wave System™
• GripTech™



Available:
• Zoning
• Rotating connection
• Blow off

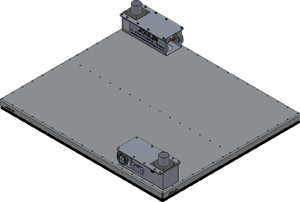

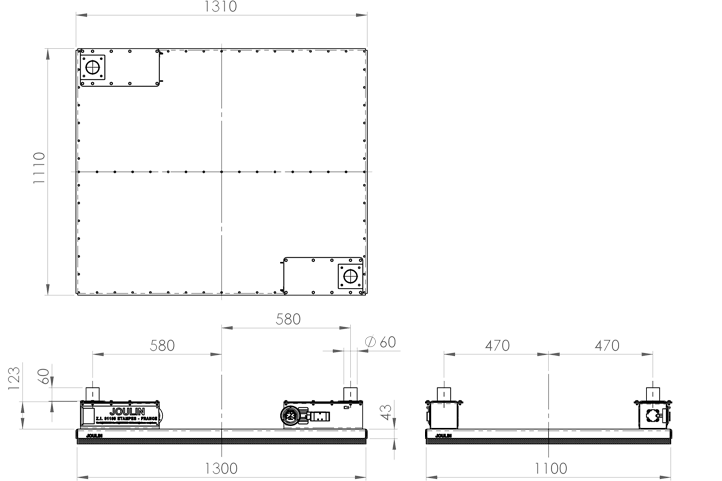

pa1310x1110 drawingpa1310x1110 3d



  Weight kg(Lbs) Power needed kw(HP) Valves Foam Pad
PA-VG-1300x1100-P20 72(158.7) 7.5 to 18 (16.9 to 24.1) 3456 PAF1300.1100-20
PA-VG-1300x1100-P28 72(158.7) 7.5 to 11 (16.9) 1748 PAF1300.1100-28
PA-VG-1300x1100-P40 72(158.7) 4.3 to 7.5(6.4 to 16.9) 864 PAF1300.1100-40
Specifications are subject to change
This gripper includes:
• PowerGrip™
• Wave System™
• GripTech™



Available:
• Zoning
• Rotating connection
• Blow off

PG version available (metered port)

Flow reverser for quick release (light products, slip sheets)

Blow off (light products, slip sheets)

Flat, raised or flexible attachments

Ejectors (venturi)



Labeling

PA- VG- 600x400 -P20
Range
of the gripper		 Technology :
- VG = Valve Gripper
- PG = Port Gripper
- FV = Foam Valve		 Dimensions :
- 600x400 mm
- 1300x260 mm
- 1300x500 mm
- 1300x900 mm
- 1300x1100 mm		 Pitch :
- P15 = 15 mm
- P20 = 20 mm
- P28 = 28 mm
- P40 = 40 mm



Example: PA-VG-1300x900-P40
Palletizer Pro Gripper, dimensions 1300mm per 900mm, pitch 40mm
