joulin handyvac

Concept

Twisted and split boards and layers

Economical compare to lumber gantry robots



Benefits

Unaffected by dust or debris

Safe and easy to use



Easy to customize

Vacuum gripper for panels or other products

Electrical switches and valves connected to a junction box if needed

Manual electrovalves

Available in steel or aluminum

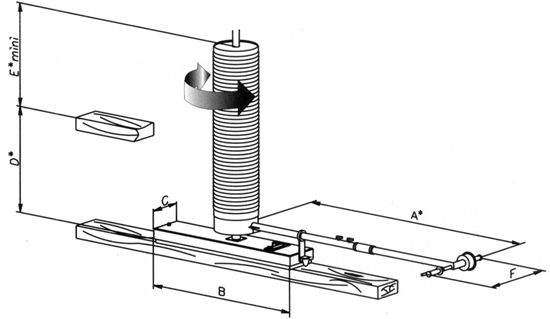

handyvac data



Type Capacité A* mini A* maxi B C D* E* F
Handyvac 100 100 kg
(220 Lbs)
1560 mm
(61.41 in)
2460 mm
(96.85 in)
1430 mm
(56.3 in)
170 mm
(6.69 in)
1570 mm
(61.81 in)
1130 mm
(44.49 in)
550 mm
(21.65 in)
2000 mm
(78.74 in)
1300 mm
(44.49 in)
550 mm
(21.65 in)
Handyvac 250 250 kg
(551 Lbs)
1560 mm
(61.41 in)
2460 mm
(96.85 in)
1430 mm
(56.3 in)
230 mm
(9.06 in)
1570 mm
(61.81 in)
1130 mm
(44.49 in)
550 mm
(21.65 in)
2000 mm
(78.74 in)
1300 mm
(44.49 in)
550 mm
(21.65 in)
*Autres dimensions sur demande
